Product overview

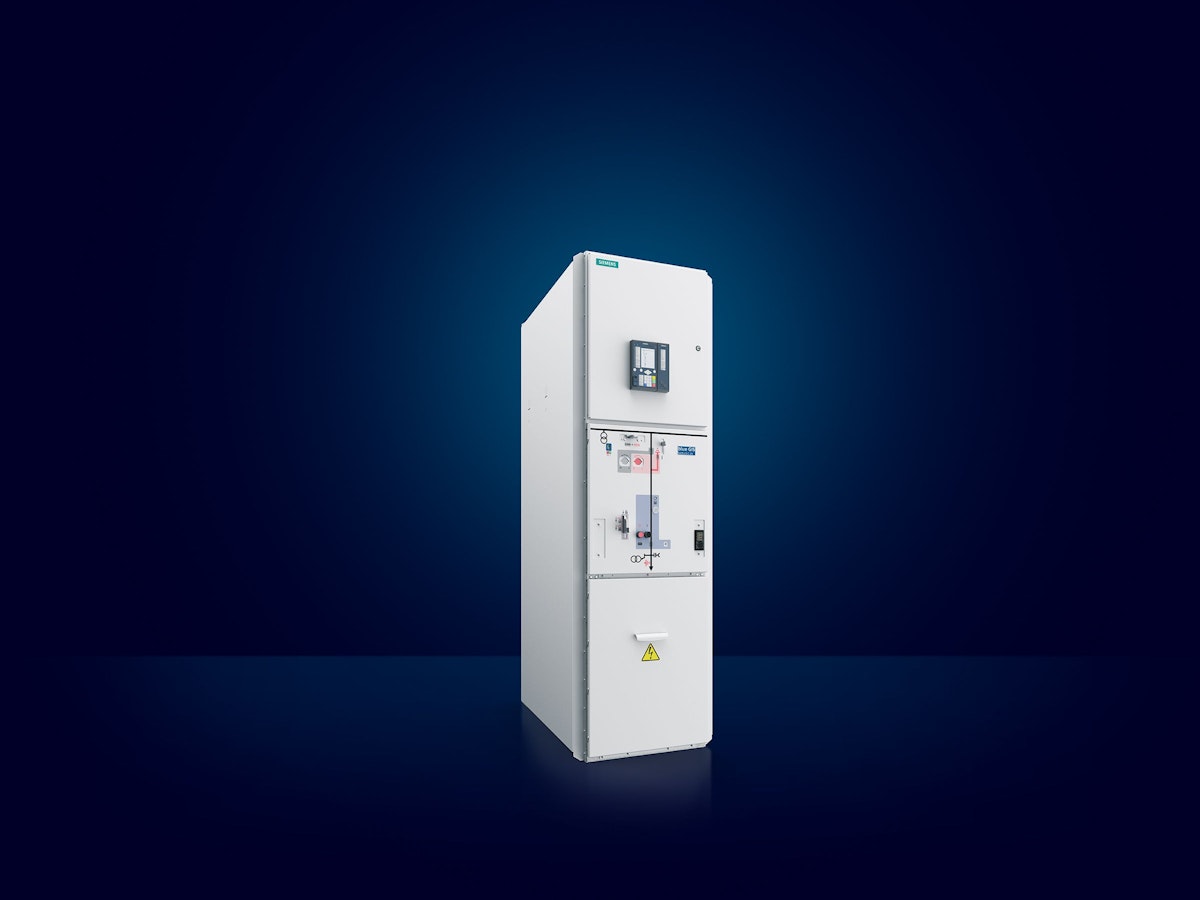

Siemens NXPLUS C 24 blue GIS is F-gas-free primary-distribution switchgear using Clean Air insulation and vacuum switching for systems up to 24 kV.
Verified electrical ratings
The current Siemens product page distinguishes a 2,500 A busbar current from a 2,000 A feeder current and states 25 kA performance. LearnSwitchgear therefore records 2,000 A in the rated-current field because that field represents the feeder, not the busbar.
Configuration and application
The family supports circuit-breaker, bus-section and disconnector functions, including a double-busbar duplex arrangement. Digital protection, control and sensing options depend on the selected panel.
Specification caution
Confirm the exact functional unit, short-time duration, internal-arc classification, cable interface, environmental derating and current catalogue edition. Do not apply the 2,500 A busbar value to a feeder.
